LM2596S-5.0 5 V Step-Down Switching Regulator IC – TO-263-5

Voltage Regulators & PMICs · Texas Instruments

LM2596S-5.0 5 V Step-Down Switching Regulator IC – TO-263-5

₹0 per quantity ₹0

In stock · 50 available

Quantity pricing PRICE / QTY
1 quantity ₹0
10 quantity ₹0
25 quantity ₹0
50 quantity ₹0
100 quantity ₹0

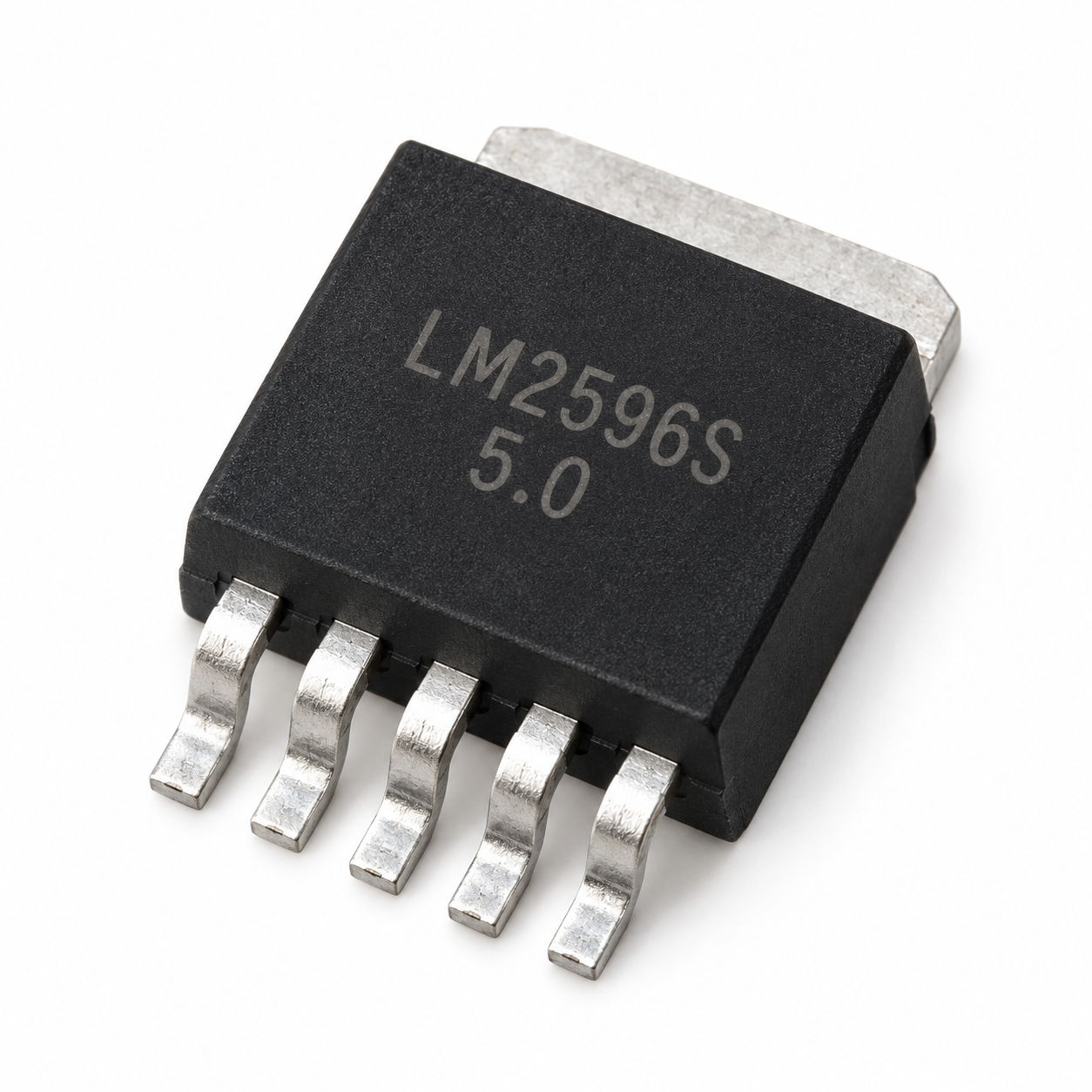

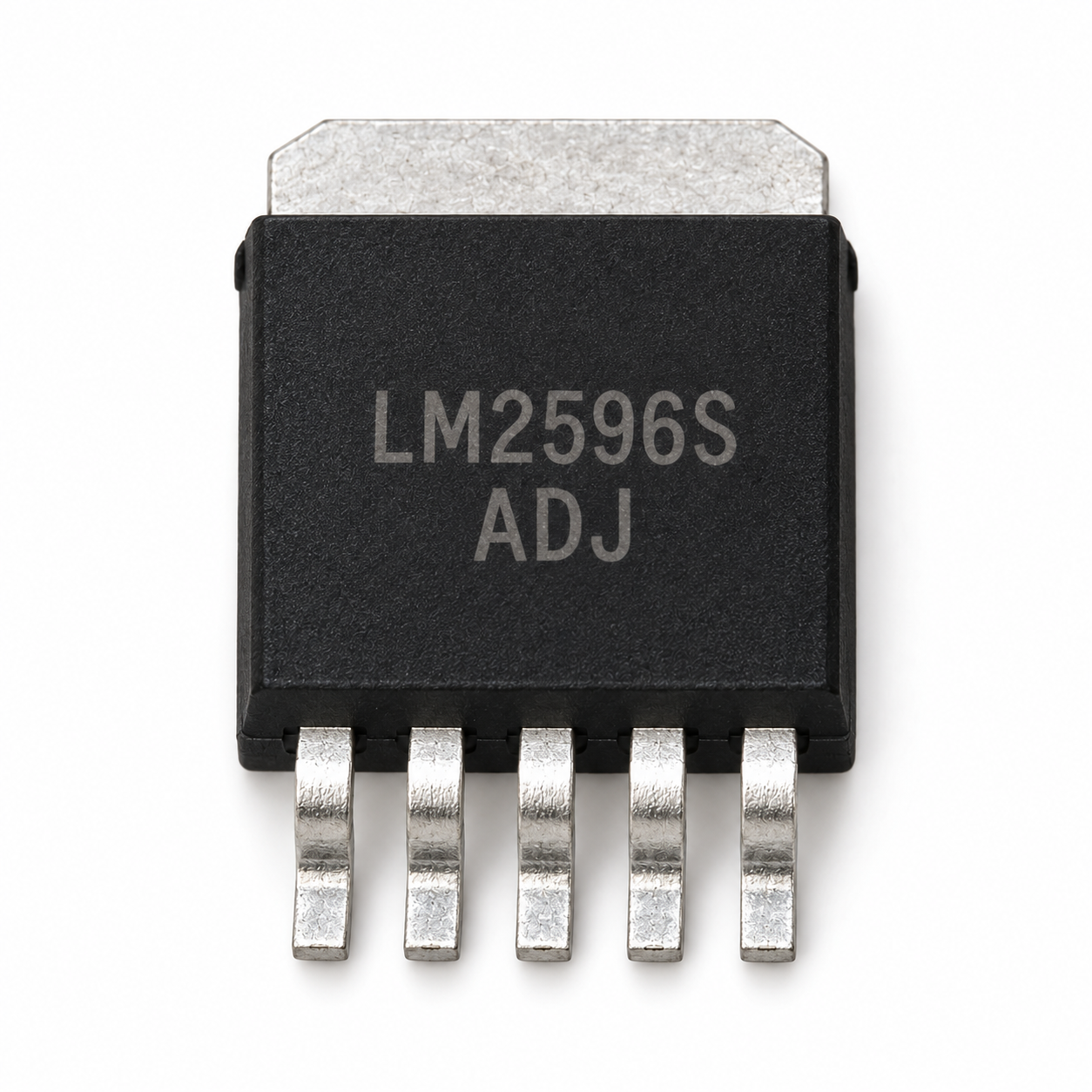

LM2596S-5.0 step-down switching regulator IC with a fixed 5 V output, supplied in a five-lead TO-263 surface-mount package. Requires external power components and suitable PCB cooling.

Line total: ₹0

Delivery details

Enter your PIN code to see delivery time, shipping and Cash on Delivery.

7-day replacement Easy replacement for manufacturing defects
Cash on Delivery Available up to ₹10,000

Specifications

Brand Name
Texas Instruments
Model ID
LM2596S-5.0 / ADJ
Sales Package
1 × selected LM2596 regulator IC
Compatible Devices
Custom power circuits designed to the selected manufacturer’s requirements
Primary Use
DC voltage reduction and embedded power supply design
Additional Features
Shutdown control, current limiting and thermal protection
Regulator topology
Non-synchronous buck / step-down
Output configuration
Positive
Fixed-version output
5 V nominal
Adjustable-version output
Approximately 1.2–37 V, subject to input headroom and circuit design
Operating input range
4.5–40 V
Rated load capability
Up to 3 A with suitable external components and cooling
Switching frequency
150 kHz nominal
Package
TO-263-5 / D²PAK
Mounting
Surface-mount
Pin 1
Input supply
Pin 2
Switching output; connects to external power components
Pin 3
Ground
Pin 4
Feedback
Pin 5
ON/OFF control
Metal tab
Ground
Operating junction temperature
−40°C to +125°C

Product warranty

7-day replacement against manufacturing defects. Physical damage, burnt, or mishandled parts are not covered.

Replacement window: 7 days from delivery.

Description

The LM2596 provides the control and switching functions for a buck power supply. Select the fixed-output or adjustable version to suit your circuit.

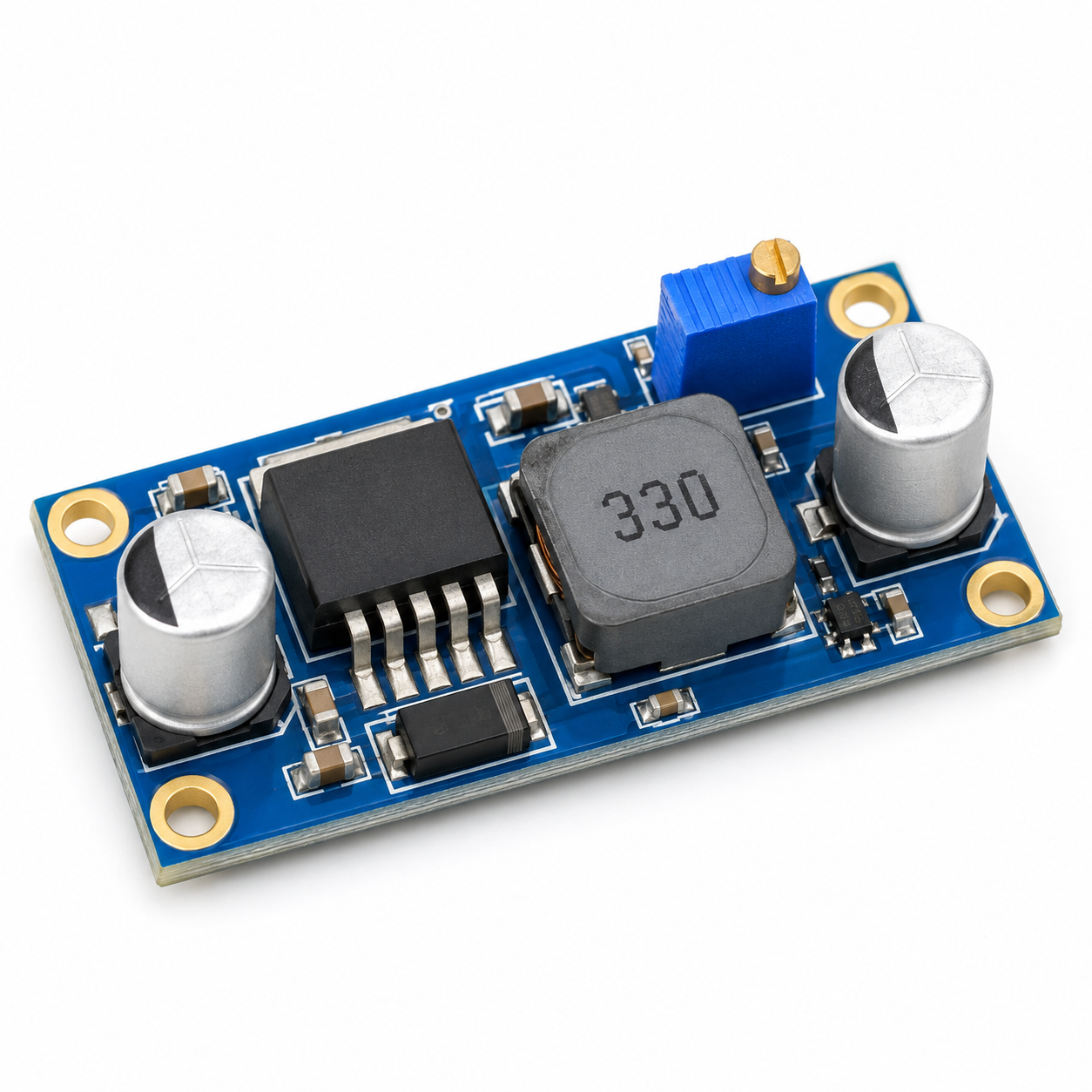

This listing supplies the individual regulator IC. A suitable inductor, catch diode, capacitors and PCB layout are required; the adjustable version also needs a feedback resistor network. Follow the selected manufacturer’s datasheet for component selection and thermal design.
