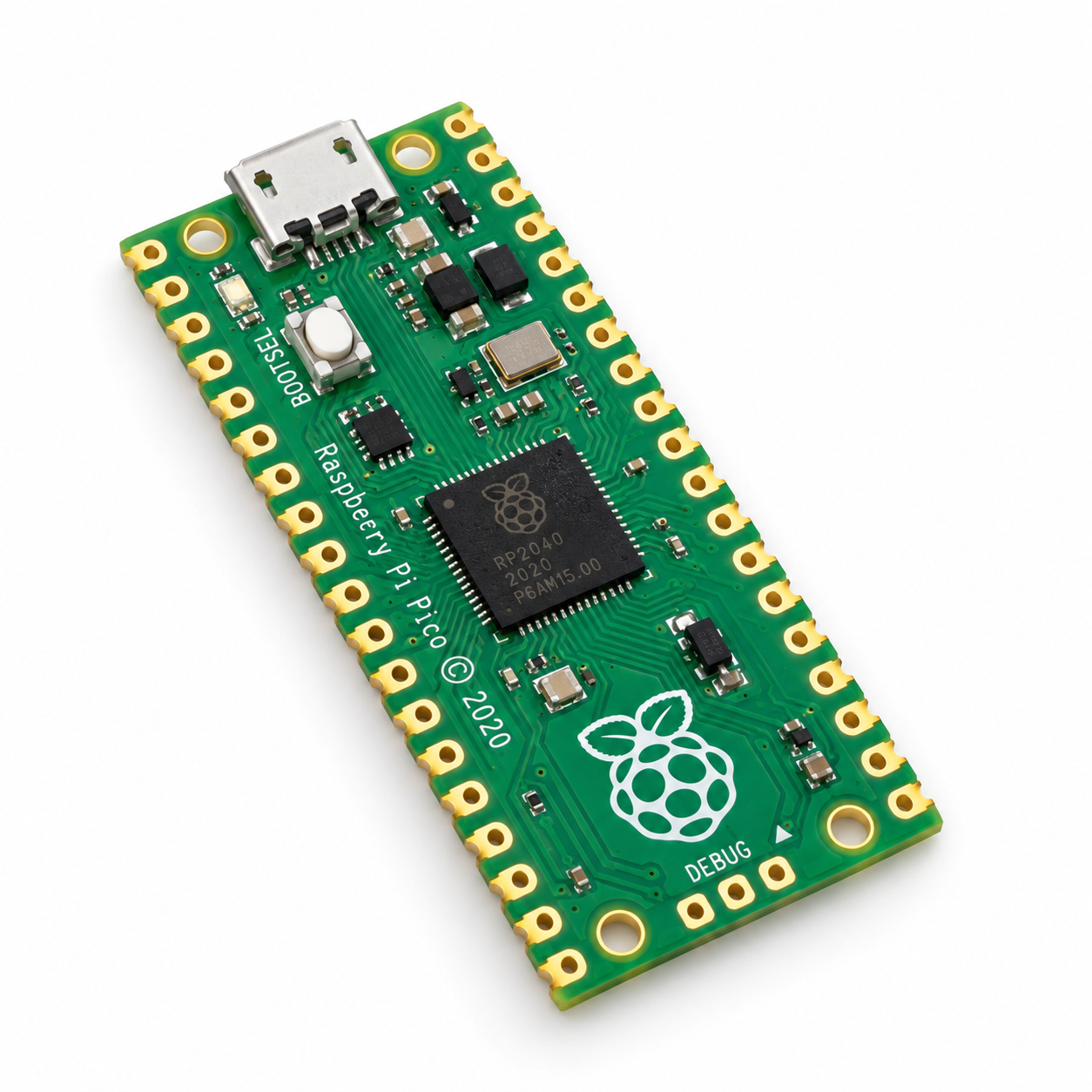

Raspberry Pi Pico RP2040 Microcontroller Board – 40-Pin Castellated, Without Headers

Microcontrollers & Dev Boards · Raspberry Pi

Raspberry Pi Pico RP2040 Microcontroller Board – 40-Pin Castellated, Without Headers

₹0 per quantity ₹0

In stock · 100 available

Quantity pricing PRICE / QTY
1 quantity ₹0
10 quantity ₹0
25 quantity ₹0
50 quantity ₹0
100 quantity ₹0

Raspberry Pi Pico is a compact RP2040 microcontroller board with a dual-core Arm Cortex-M0+ processor, 264 KB SRAM and 2 MB flash. Its 40-pin DIP-style castellated layout supports prototyping and integration into embedded products.

Line total: ₹0

Delivery details

Enter your PIN code to see delivery time, shipping and Cash on Delivery.

7-day replacement Easy replacement for manufacturing defects
Cash on Delivery Available up to ₹10,000

Specifications

Brand Name
Raspberry Pi
Model ID
Raspberry Pi Pico (RP2040)
Sales Package
1 × Raspberry Pi Pico board
Compatible Devices
Suitable 3.3 V GPIO peripherals; breadboards with headers fitted; computers with a compatible USB connection
Primary Use
Electronics learning, embedded prototyping, robotics and custom control projects
Additional Features
BOOTSEL button, onboard LED, USB programming and SWD debugging
Manufacturer
Raspberry Pi
Microcontroller
RP2040
Product type
Microcontroller development board
Processor
Dual-core 32-bit Arm Cortex-M0+
Maximum clock frequency
133 MHz
SRAM
264 KB
Flash memory
2 MB onboard QSPI flash
GPIO
26 multifunction GPIO pins
Analog inputs
3 × 12-bit ADC inputs
UART
2 controllers
SPI
2 controllers
I²C
2 controllers
PWM
16 channels
Programmable I/O
8 PIO state machines
USB
USB 1.1, host and device support
USB connector
Micro-USB Type-B
GPIO logic voltage
3.3 V; GPIO is not 5 V tolerant
External power input
1.8–5.5 V DC via VSYS
Board dimensions
51 × 21 mm
Connection format
40-pin DIP-style through-hole and castellated edges
Pin pitch
2.54 mm
Headers
Not pre-soldered on standard Pico
Debug interface
3-pin Serial Wire Debug (SWD)
Programming
MicroPython and C/C++
Wireless connectivity
No onboard Wi-Fi or Bluetooth
Operating temperature
−20°C to +85°C

Product warranty

7-day replacement against manufacturing defects. Physical damage, burnt, or mishandled parts are not covered.

Replacement window: 7 days from delivery.

Description

The Raspberry Pi Pico provides a flexible platform for learning electronics, developing embedded applications and building custom controllers. It uses Raspberry Pi’s RP2040 microcontroller and supports development in MicroPython and C/C++.

The board provides 26 multifunction GPIO pins, including three analog inputs, alongside UART, SPI, I²C, PWM and Programmable I/O interfaces. A Micro-USB connector supports power, data and programming.

Its through-hole and castellated connections allow use with soldered headers or direct mounting onto a suitable carrier PCB. This listing is for the standard Pico without pre-soldered headers.
