STM32F103C8T6 Blue Pill ARM Cortex-M3 Development Board – 40-Pin

Microcontrollers & Dev Boards · STMicroelectronics

STM32F103C8T6 Blue Pill ARM Cortex-M3 Development Board – 40-Pin

₹0 per quantity ₹0

In stock · 60 available

Quantity pricing PRICE / QTY
1 quantity ₹0
10 quantity ₹0
25 quantity ₹0
50 quantity ₹0
100 quantity ₹0

Compact Blue Pill development board based on the STM32F103C8T6 Arm Cortex-M3 microcontroller, with a maximum CPU frequency of 72 MHz, 64 KB flash and 20 KB SRAM. Suitable for embedded programming, sensor interfacing and control projects.

Line total: ₹0

Delivery details

Enter your PIN code to see delivery time, shipping and Cash on Delivery.

7-day replacement Easy replacement for manufacturing defects
Cash on Delivery Available up to ₹10,000

Specifications

Brand Name
STMicroelectronics
Model ID
STM32F103C8T6 Blue Pill
Sales Package
1 × Blue Pill development board
Compatible Devices
Compatible SWD programmers and peripherals meeting the board’s electrical requirements
Primary Use
Embedded development, electronics learning, sensor interfacing and control projects
Additional Features
Typical board: reset button, boot-selection jumpers, onboard LEDs and SWD connections; verify supplied revision
Board type
Blue Pill development board
MCU manufacturer
STMicroelectronics
Microcontroller
STM32F103C8T6
MCU family
STM32F1
Processor
32-bit Arm Cortex-M3
Maximum CPU frequency
72 MHz
Specified flash memory
64 KB
SRAM
20 KB
MCU package
LQFP-48
MCU GPIO capability
Up to 37 I/O pins; board availability depends on layout
ADC
Two 12-bit ADCs, sharing 10 external analog input channels
USART
3 controllers
SPI
2 controllers
I²C
2 controllers
USB controller
USB 2.0 full-speed device
CAN controller
CAN 2.0B; external transceiver required
Main timers
Three general-purpose 16-bit timers and one advanced-control timer
MCU operating supply
2.0–3.6 V
Typical board logic voltage
3.3 V
Board power input
Confirm supported USB and header power inputs with supplier
Board connections
Typical: two 20-pin rows, 40 connections total
Header pitch
Typical: 2.54 mm; verify board
Programming / debugging
SWD; bootloader-based uploading depends on configuration
Wireless connectivity
No onboard Wi-Fi or Bluetooth on standard Blue Pill
MCU operating temperature
−40°C to +85°C; complete-board rating depends on components
USB bootloader
Supplier-dependent; verify before advertising

Product warranty

7-day replacement against manufacturing defects. Physical damage, burnt, or mishandled parts are not covered.

Replacement window: 7 days from delivery.

Description

The STM32F103C8T6 Blue Pill provides a compact platform for learning and developing embedded applications. Its 32-bit Arm Cortex-M3 processor supports digital control, analog measurement and communication with compatible peripherals.

The MCU includes USART, SPI, I²C, USB and CAN controllers, along with timers and 12-bit analog-to-digital converters. Available connections depend on the board layout and pin configuration. CAN communication requires an external transceiver.

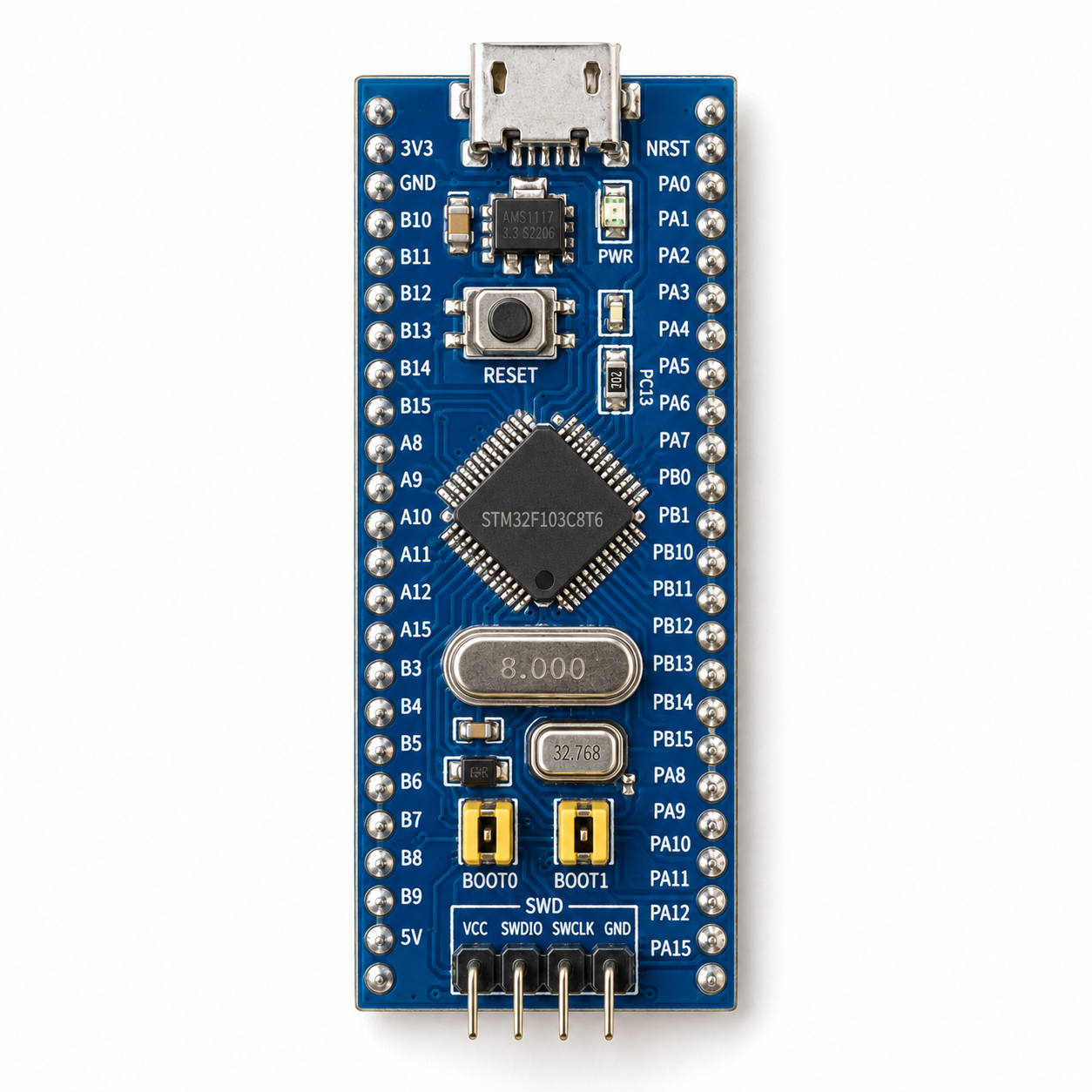

Typical Blue Pill boards include a USB connector, reset button, boot-selection jumpers and debugging connections. Confirm the connector type, fitted headers and supplied accessories against your actual stock.

Programming and debugging can use a compatible SWD programmer such as ST-LINK. USB uploading requires suitable firmware or a bootloader; do not advertise a preinstalled USB bootloader unless verified.
