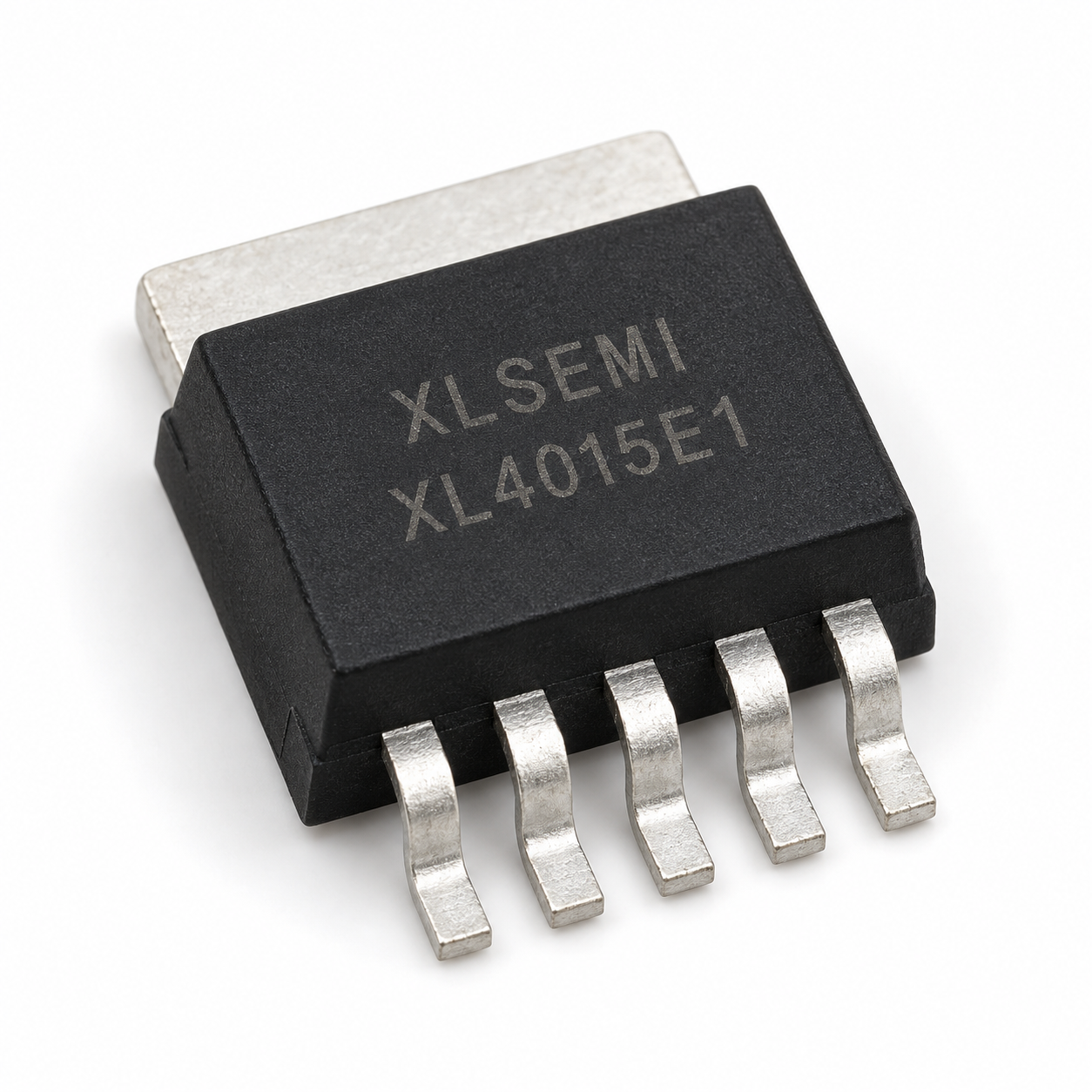

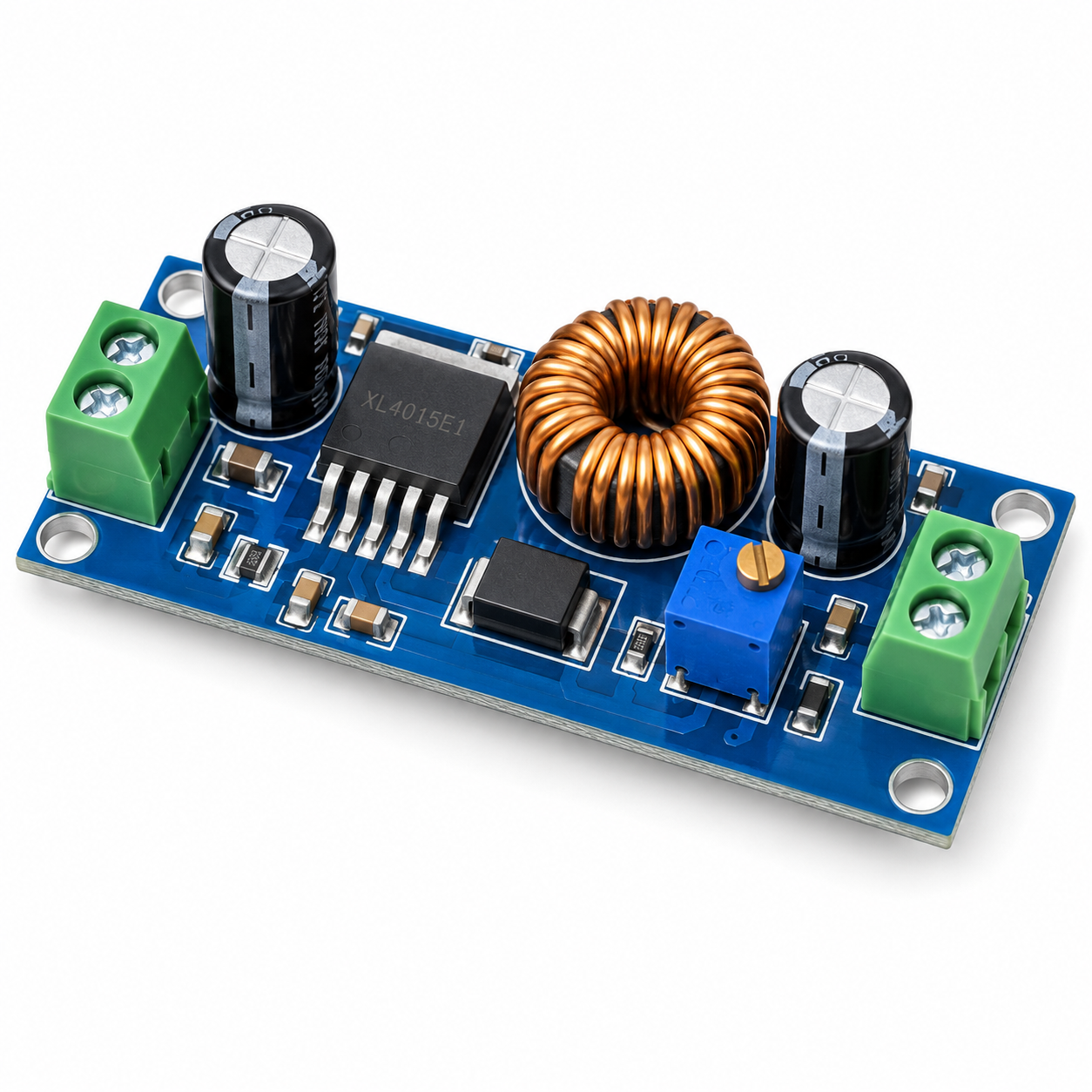

XLSEMI XL4015 Adjustable Buck Converter IC – TO-263-5

Specifications

Brand Name

XLSEMI

Model ID

XL4015E1

Sales Package

1 × regulator IC

Compatible Devices

Circuits designed to the datasheet

Primary Use

Custom DC power supply design

Additional Features

Thermal shutdown, current limiting and short-circuit protection

Manufacturer

XLSEMI

Ordering code

XL4015E1

Topology

Buck / step-down

Output

Adjustable

Operating input

8–36 V

Adjustable output range

1.25–32 V, subject to input headroom

Load capability

Up to 5 A with suitable circuit components and cooling

Switching frequency

180 kHz nominal

Feedback reference

1.25 V

Package

TO-263-5L

Mounting

Surface-mount

Pin 1

Ground

Pin 2

Feedback

Pin 3

Switching node

Pin 4

VC bypass-capacitor connection

Pin 5

Input supply

Metal tab

Switching node

Operating junction temperature

−40°C to +125°C

Absolute maximum input

40 V; not an operating target
